Introduction to CNC Turret Punch Press

A CNC (Computer Numerical Control) turret punch press is a machine tool that automates the process of punching, cutting, and shaping metal sheets. It uses a turret (a rotating tool station) that holds multiple punching tools, which can be automatically selected and changed during operation, all controlled by a computer system.

This machine is particularly useful for producing parts with a variety of shapes and sizes. CNC turret punch presses are typically used in the sheet metal fabrication industry for their speed, efficiency, and precision in high-volume production runs.

Digital Showroom

Explore CNC Turret Punch Presses Virtually

Modern manufacturers offer digital showrooms that allow customers to explore a range of CNC turret punch presses from the comfort of their offices. These digital platforms provide a 3D view of the machine's capabilities, including animations of the punching process, tool rotations, and real-time operations.

Virtual Tours

Take a guided tour of different models and features with interactive 3D visualization.

Product Demonstrations

Watch videos showing the machine in action, demonstrating how it handles various materials and complex cuts.

Customer Success Stories

Learn how businesses are using CNC turret punch presses to streamline their operations and increase productivity.

Types Of CNC Turret Punch Press

Mechanical Turret Punch Press

Mechanical turret punch presses use mechanical systems to apply force to the punching tools. They are fast, reliable, and generally more affordable, making them ideal for high-speed, high-volume applications where efficiency is key.

Best for: Simple, repetitive tasks and environments with limited complexity.

Hydraulic Turret Punch Press

Hydraulic turret punch presses use hydraulic systems to apply force, offering greater control over the punching process. They are more suitable for handling thicker materials and performing more complex operations.

Best for: Thick sheet metal, more intricate designs, and jobs that require adjustable punching force.

Servo-Electric Turret Punch Press

Servo-electric punch presses use electric motors to control the punching force and turret movement. These machines are energy-efficient and provide high precision, making them ideal for industries that require accuracy and minimal environmental impact.

Best for: Complex designs and high-precision work where energy efficiency is critical.

Hybrid Models

Hybrid models combine mechanical, hydraulic, and electric technologies. They offer the best of all worlds by providing the speed and efficiency of mechanical models, the power and control of hydraulic models, and the precision of servo-electric machines.

Best for: A balance of speed, power, and accuracy, often used for a wide range of applications.

Product Advantages

High Precision and Accuracy

One of the main advantages of CNC turret punch presses is their ability to deliver consistently high precision. The computerized control system ensures that each punch is placed accurately, which is essential for producing high-quality components in industries like aerospace, automotive, and electronics.

Increased Speed and Efficiency

CNC turret punch presses significantly reduce production time compared to manual punching methods. The automatic tool change function allows for continuous operation, which speeds up the entire manufacturing process and reduces downtime.

Versatility

CNC turret punch presses can handle a wide variety of tasks, from simple hole punching to more complex operations like embossing, notching, and forming. This versatility makes them suitable for different industries and manufacturing processes.

Cost-Effectiveness

These machines can be more cost-effective in the long term due to their speed, accuracy, and automation. They reduce the need for manual labor, improve material utilization, and minimize errors, all of which contribute to reducing operational costs.

Reduced Manual Labor

By automating the punching process, CNC turret punch presses minimize human error and physical strain. This not only improves safety in the workplace but also allows operators to focus on other tasks, increasing overall productivity.

Safety and Reliability

Advanced safety features and robust construction ensure reliable operation and operator safety in demanding industrial environments, with comprehensive protection systems and emergency stop mechanisms.

Technical Specifications

Machine Size and Capacity

CNC turret punch presses come in various sizes, with capabilities ranging from small, benchtop models to large, industrial machines capable of handling large sheets of metal.

Common Specifications:

• Common sizes: 1250 x 2500 mm or 1500 x 3000 mm
• Custom sizes available for specific requirements
• Maximum sheet thickness: 6-12 mm depending on model
• Work area: Up to 3000 x 1500 mm

Punching Force and Capacity

The punching force of these machines typically ranges from 100 kN to 300 kN, depending on the model. Some high-end models can punch through thicker sheets of metal, while others are better suited for thin materials.

Force Specifications:

• Punching force: 100-300 kN
• Maximum stroke: 25-50 mm
• Punching speed: Up to 900 hits per minute
• Tool stations: 16-32 stations

Speed and Efficiency

High Speed Operation

Machines can punch up to 900 hits per minute (HPM) depending on the model and material.

Automated Tool Changes

High-speed feeding and automated tool changes improve operational efficiency, making CNC turret punch presses ideal for mass production.

Tool Stations

The number of tool stations in the turret is a key specification, with modern machines offering anywhere from 16 to 32 tool stations.

Applications

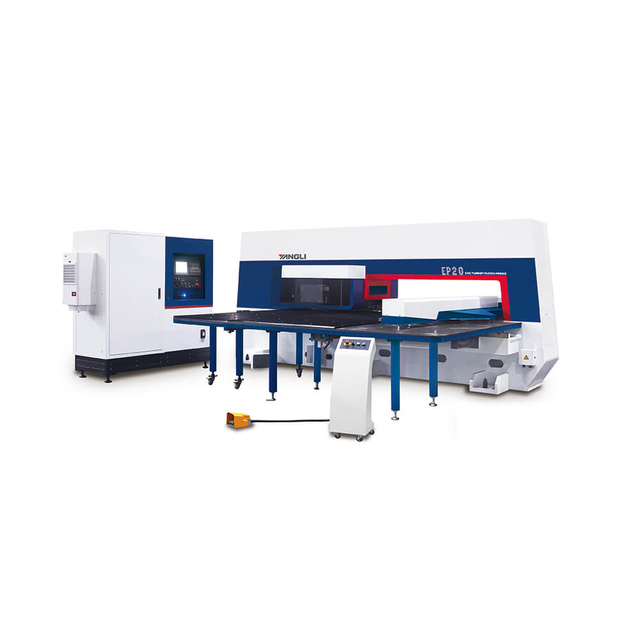

Metal Fabrication

CNC turret punch presses are widely used in metal fabrication for producing parts such as brackets, panels, and housings with high precision and efficiency.

Automotive Industry

The ability to work with a wide range of materials and create precise shapes makes turret punch presses ideal for automotive manufacturers who require high-precision metal parts.

Electronics Manufacturing

CNC turret punch presses are used in the production of enclosures and components for electronic devices, ensuring accuracy and fast production.

Prototyping and Custom Parts

The machine's flexibility also makes it ideal for creating prototypes or custom parts quickly and efficiently, allowing manufacturers to test designs before full-scale production.

Product Quality Control

Manufacturing Standards

CNC turret punch presses are built to meet international standards such as ISO 9001 for quality management systems and CE certifications for safety and environmental compliance.

Regular Testing

Machines undergo rigorous testing to ensure punching accuracy, tool alignment, and overall reliability. This includes pressure tests, vibration analysis, and functional checks.

Calibration and Maintenance

Routine calibration of the machine ensures continued accuracy. Preventative maintenance includes tool inspections, system updates, and regular checks of the machine's components.

Frequently Asked Questions (FAQs)

1. What is the difference between mechanical and hydraulic turret punch presses?

Mechanical presses are faster, while hydraulic presses offer better control and are suitable for thicker materials.

2. How do I maintain my CNC turret punch press?

Regular maintenance involves cleaning, tool checks, lubricating moving parts, and verifying system calibration.

3. Can CNC turret punch presses work with different materials?

Yes, CNC turret punch presses are versatile and can handle a variety of materials, including steel, aluminum, and plastic.

4. What software is used to program CNC turret punch presses?

Commonly used software includes Trumpf, Amada, and Mazak, offering easy-to-use interfaces for designing punching patterns.

5. How long does it take to receive a CNC turret punch press?

Delivery times vary, but standard machines can typically be shipped within 4-6 weeks. Custom orders may take longer.

How to Order

1

Choose the Right Model

Evaluate your production needs to choose the appropriate model with the required punching capacity, speed, and features.

2

Customize Your Order

Select additional features like tool stations, automation options, and control systems to meet your specific requirements.

3

Request a Quote

Contact suppliers for a personalized quote based on the machine's configuration and your business needs.

4

Order and Delivery

Once the quote is accepted, finalize your order and arrange for delivery and installation.
