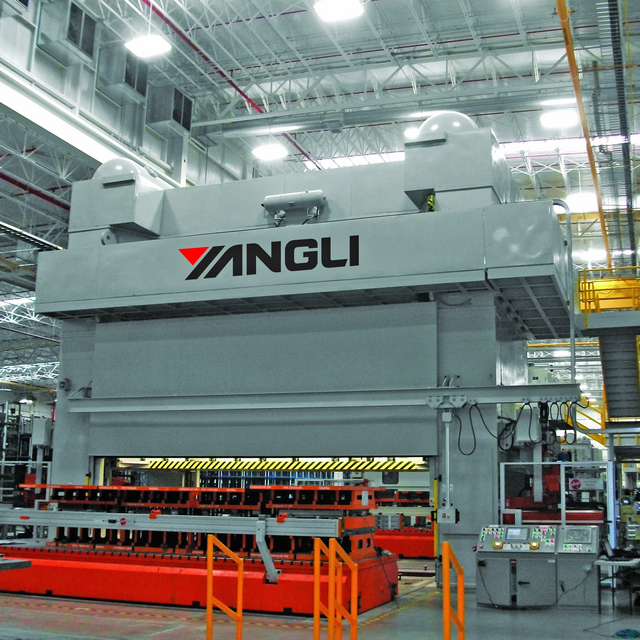

Link Drive Transfer Press TL4 Model
Advanced multi-link transfer press with high precision and efficiency for complex manufacturing processes
Learn MoreAbout Link Drive Transfer Press TL4 Model
1. Advanced Transfer Technology
The TL4 model features advanced transfer technology with multi-link drive system, designed for high-speed and high-precision transfer operations. It combines sophisticated transfer mechanisms with precise control systems for optimal performance in complex manufacturing processes.
2. Multi-Link Drive System
The multi-link drive system provides exceptional stability and precision during transfer operations. Each link is optimized for specific movement patterns, ensuring smooth and accurate transfer of workpieces between stations with minimal vibration and maximum efficiency.
3. Intelligent Control System
The TL4 model incorporates intelligent control systems that monitor and adjust transfer operations in real-time. Advanced sensors and feedback mechanisms ensure consistent quality and optimal performance across all production cycles.
Learn More
Technical Features
Multi-Link Drive
Advanced multi-link drive system ensures precise and stable transfer operations with minimal vibration and maximum efficiency.
Intelligent Control
Real-time monitoring and adjustment systems ensure consistent quality and optimal performance across all production cycles.
High Speed
Optimized for high-speed transfer operations while maintaining precision and reliability in demanding manufacturing environments.
Safety Systems
Comprehensive safety systems including overload protection and emergency stop mechanisms ensure safe operation.
Applications
Automotive Manufacturing
Ideal for high-volume automotive component production with complex transfer requirements and strict quality standards.
Electronics Industry
Perfect for precision electronic component manufacturing requiring delicate handling and high accuracy transfer operations.
Aerospace Components
Suitable for aerospace component manufacturing where precision, reliability, and consistency are critical requirements.
Working Principle

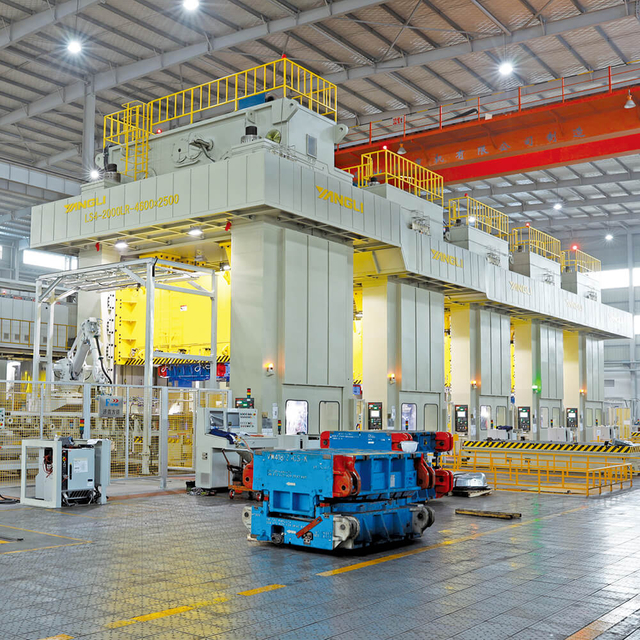

Multi-Link Transfer System
The multi-link transfer system provides precise control over workpiece movement between stations, ensuring accurate positioning and smooth operation.

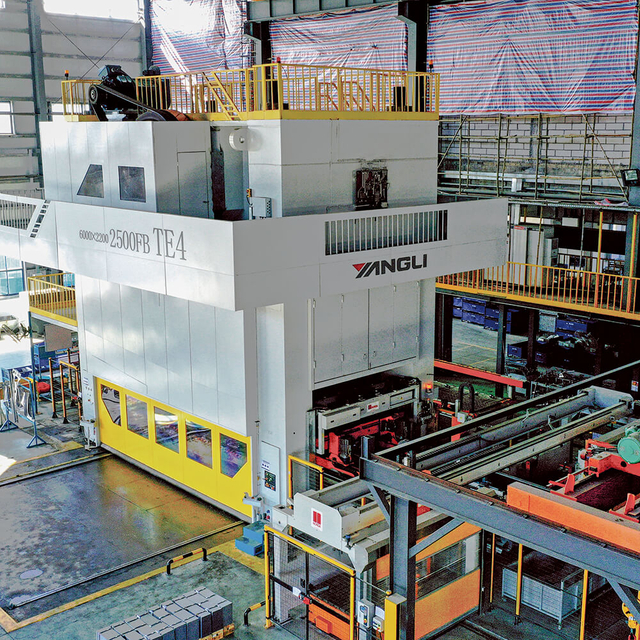

Advanced Control Mechanism
Intelligent control systems monitor and adjust transfer operations in real-time, ensuring consistent quality and optimal performance.

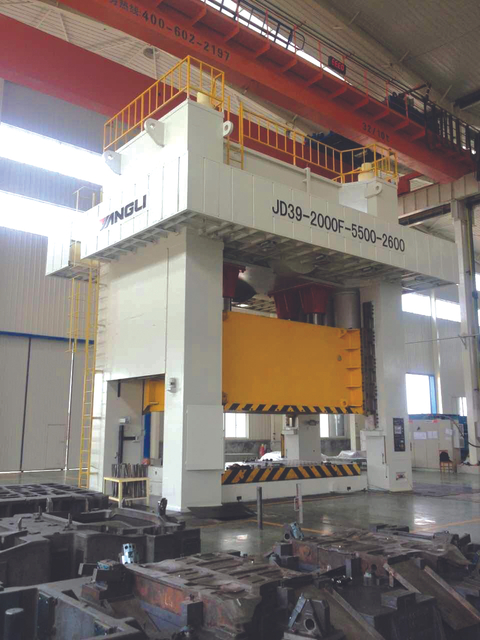

Precision Transfer Operations
High-precision transfer operations with minimal vibration and maximum efficiency for complex manufacturing processes.
Product Specifications
TL4-800
- Nominal force: 8000 kN
- Transfer stroke: 200-400 mm
- Transfer speed: 15-25 SPM
- Workpiece size: 800×1200 mm
- Transfer accuracy: ±0.1 mm
- Main motor power: 200 kW
- Control system: PLC + HMI
- Safety class: CE certified
TL4-1000
- Nominal force: 10000 kN
- Transfer stroke: 250-500 mm
- Transfer speed: 12-20 SPM
- Workpiece size: 1000×1500 mm
- Transfer accuracy: ±0.1 mm
- Main motor power: 250 kW
- Control system: PLC + HMI
- Safety class: CE certified
TL4-1250
- Nominal force: 12500 kN
- Transfer stroke: 300-600 mm
- Transfer speed: 10-18 SPM
- Workpiece size: 1200×1800 mm
- Transfer accuracy: ±0.15 mm
- Main motor power: 300 kW
- Control system: PLC + HMI
- Safety class: CE certified
TL4-1600
- Nominal force: 16000 kN
- Transfer stroke: 350-700 mm
- Transfer speed: 8-15 SPM
- Workpiece size: 1500×2200 mm
- Transfer accuracy: ±0.15 mm
- Main motor power: 350 kW
- Control system: PLC + HMI
- Safety class: CE certified
TL4-2000
- Nominal force: 20000 kN
- Transfer stroke: 400-800 mm
- Transfer speed: 6-12 SPM
- Workpiece size: 1800×2500 mm
- Transfer accuracy: ±0.2 mm
- Main motor power: 400 kW
- Control system: PLC + HMI
- Safety class: CE certified
TL4-2500
- Nominal force: 25000 kN
- Transfer stroke: 500-1000 mm
- Transfer speed: 5-10 SPM
- Workpiece size: 2000×3000 mm
- Transfer accuracy: ±0.2 mm
- Main motor power: 500 kW
- Control system: PLC + HMI
- Safety class: CE certified
Key Advantages
High Precision Transfer
Advanced multi-link system ensures precise workpiece positioning with accuracy up to ±0.1mm, critical for high-quality manufacturing.
High Speed Operation
Optimized transfer mechanisms enable high-speed operations up to 25 SPM while maintaining precision and reliability.
Intelligent Control
Real-time monitoring and adaptive control systems ensure optimal performance and consistent quality across all production cycles.
Flexible Configuration
Modular design allows for easy customization and adaptation to different production requirements and workpiece specifications.
Energy Efficiency
Advanced drive systems and optimized control algorithms reduce energy consumption while maintaining high performance levels.
Safety & Reliability
Comprehensive safety systems and robust construction ensure reliable operation and operator safety in demanding industrial environments.
